1 About
this Book
openCRX
is the leading open source CRM enterprise suite. openCRX is based on
the openMDX
application framework, an open source application framework based on
the OMG's model driven architecture (MDA)
standards, delivering maximum openness, standards compliance and a
state-of-the-art component-based architecture.
This book describes the manual installation of
openCRX for deployment on Apache
Tomcat.
1.1 Who
this book is for
The intended audience are openCRX administrators
and system administrators who either want to install openCRX
manually (for whatever reason) or want to install openCRX on a
platform not supported by our openCRX
Server installer.
1.2 What do you need to understand this book
This book describes the manual installation of
openCRX for deployment on Apache
Tomcat. The book assumes that you are familiar with the Tomcat
management and administration.
1.3 Tips,
Warnings, etc.
We make use the following pictograms:

|
Information provided as a “Tip” might be
helpful for various reasons: time savings, risk reduction, etc.
|

|
You should carefully read information marked
with “Important”. Ignoring such information is typically not
a good idea.
|

|
Warnings should not be ignored (risk of data
loss, etc.)
|
2 Prerequisites
As a first step select the openCRX version you
want to install. Based on the published version compatibility
information you can determine the appropriate versions of openMDX,
Tomcat,
and Java
JDK:
http://www.opencrx.org/faq.htm#versioncompatibility

|
Write down the version numbers of the software
packages you have chosen to install – this may be helpful in
the future in case you require support or want to file a bug
report:
openCRX v_______ (this guide is based
on openCRX v2.4.1) openMDX v_______ (this guide is
based on openCRX v2.4.1) Tomcat v_______ (this guide is
based on Tomcat v6.0.18) JDK v_______ (this guide is
based on Sun's JDK 1.5.17)
|

|
Throughout the installation of openCRX and
related software it is a good idea to avoid paths containing
blanks like the default installation directory ...\Program
Files\... on Windows.
Whenever an installer proposes an installation
path containing blanks, please change the path to avoid problems
down the road.
|
2.1 JDK 5.0
Install the Sun Java JDK 5.0 available from the
following site:
Sun JDK
5.0:
http://java.sun.com/javase/downloads/index_jdk5.jsp

|
It is not sufficient to have a Java Runtime
Environment (JRE) only. The full-blown JDK is required to run
openCRX.
|

|
Don't forget to set the environment
variable JAVA_HOME
|
2.2 Ant 1.7.0
Download Ant 1.7.0 (available from
http://ant.apache.org/)
for your platform and install it by expanding the downloaded file to
a directory of your choice.

|
Ant v1.7.1 might work as well. However, we
recommend Ant v1.7.0 (there are some combinations of JDK versions
and Ant v1.7.1 that “don't like each other”...)
|

|
Don't forget to set the environment
variables ANT_HOME
and ANT_OPS
as follows:
ANT_HOME
should point to the installation directory of Ant, e.g.
D:\apache-ant-1.7.0
on Windows or /opt/apache-ant-1.7.0
on Linux.
ANT_OPS
should be set to -Xmx512m
so that enough memory can be allocated to compile openCRX during
the installation of the openCRX SDK.
|
2.3 openMDX
SDK
Download and install
the openMDX SDK: http://www.openmdx.org/sdk.htm
Installation instructions are also available from
the above website.

|
If your
platform is not supported by the openMDX
SDK Installer,
you can install the openMDX SDK on one of the supported platforms
and then copy the required files to your target platform.
|
2.4 openCRX
SDK
Download and install
the openCRX SDK: http://www.opencrx.org/sdk.htm
Installation instructions are also available from
the above website.

|
If your
platform is not supported by the openCRX
SDK Installer,
you can install the openCRX SDK on one of the supported platforms
and then copy the required files to your target platform.
|
2.5 Apache
Tomcat
Download Tomcat 6.0.18
from
http://archive.apache.org/dist/tomcat/tomcat-6/v6.0.18/bin/
This guide is based on Tomcat
v6.0.18:
http://archive.apache.org/dist/tomcat/tomcat-6/v6.0.18/bin/apache-tomcat-6.0.18.zip
(Windows)
http://archive.apache.org/dist/tomcat/tomcat-6/v6.0.18/bin/apache-tomcat-6.0.18.tar.gz
(Linux)

|
If
you want to deploy openCRX
on a Tomcat version different from Tomcat v6.0.18,
we recommend to build a the files tomcat-juli.jar
and catalina.jar
matching to your Tomcat version as follows:
download the desired Tomcat binary, e.g.
apache-tomcat-6.0.xx.zip
(or apache-tomcat-6.0.xx.tar.gz on Linux) and expand it to a
directory of your choice, e.g. D:\apache-tomcat-6.0.xx
on Windows or /opt/apache-tomcat-6.0.xx
on Linux
download and install the openMDX SDK (see
http://www.openmdx.org/sdk.htm)
copy
all the files from the directory
TOMCAT_HOME\lib
to the openMDX SKD directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\apache\jre-1.5\tomcat\lib
(overwrite existing files)
copy the file
tomcat-juli.jar
from the directory TOMCAT_HOME\bin
to the openMDX SKD directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\apache\jre-1.5\tomcat\lib
(overwrite the existing file)
open
a shell an change to the directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\core
run
ant clean
and then run ant
deliverables
the above will build
various files in the directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\jre-1.5\core\lib
copy the file
tomcat-juli.jar
to TOMCAT_HOME\bin
open
a shell an change to the directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\openejb
run
ant clean
and then run ant
deliverables
the above will build
various files in the directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\openejb-3\openejb\lib
copy the file catalina.jar
to TOMCAT_HOME\lib
|
2.6 Database
Please note that you must set up the openCRX
database as described in the respective openCRX database
installation guide before you continue. For example, if you
want to install openCRX for PostgreSQL, you must first install
PostgreSQL and the matching openCRX database definitions.
Database installation guides for the supported
database management systems are available from
http://www.opencrx.org/documents.htm

|
Please remember that you will also need a JDBC
driver appropriate for your database management system
(please refer to the relevant DB installation guide for
additional information).
Copy the JDBC driver into the directory
TOMCAT_HOME\lib.
|

|
Please note that this guides assumes that you
installed PostgreSQL for DB-specific instructions. If you decided
for another DBMS, you might have to adapt some of the
commands/instructions accordingly.
|
Once you have successfully installed the database
you are ready to continue with the Tomcat setup.
3 Installing openCRX for Tomcat
In a first step,
install Apache Tomcat by expanding the downloaded file
apache-tomcat-6.0.18.zip
(or apache-tomcat-6.0.18.tar.gz
respectively) to a directory of your choice, e.g.
D:\apache-tomcat-6.0.18 on
Windows or /opt/apache-tomcat-6.0.18
on Linux. For the remainder of this document we assume that
TOMCAT_HOME points to the Tomcat installation directory, e.g.
TOMCAT_HOME=D:\apache-tomcat-6.0.18

|
On Windows, avoid paths that contain blanks
(e.g. the famous C:\Program
File\...) as there are all kinds of pitfalls down the road...
|

|
Make sure that you added JAVA_HOME
to your system environment variables as Tomcat needs the JDK to
compile JSPs, e.g. JAVA_HOME=D:\java\jdk1.5.0
on Windows or JAVA_HOME=/opt/java/jdk1.5.0
on Linux.
|
Now we add openMDX and Apache OpenEJB to Tomcat by copying
several files from the openCRX SDK to the Tomcat directory
structure:
copy the file
tomcat-juli.jar
from the openMDX SDK installation directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\jre-1.5\core\lib
to the Tomcat directory TOMCAT_HOME\bin
(overwrite the existing file)
copy
the file catalina.jar
from the openMDX SDK installation directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\openejb-3\openejb\lib
to the Tomcat directory TOMCAT_HOME\lib
(overwrite the existing file)

|
Please note
that the files tomcat-juli.jar and catalina.jar are
version-specific, i.e. if you want to run openCRX on a Tomcat version different from Tomcat v6.0.18
you need to go back to chapter 2.5 Apache Tomcat and build them.
|
copy
the two files openmdx-base.jar
and openmdx-base-ext.jar
from the openMDX SDK installation directory
<MDX_SDK_Install_Dir>\openmdx-2.4.1\jre-1.5\core\lib
to the Tomcat directory TOMCAT_HOME\lib
open
the ZIP file <MDX_SDK_Install_Dir>\openmdx 2.4.1\
repository\distribution\ openmdx-2.4.1-openejb.openejb-3.zip
and copy the file openmdx-openejb.war
- located in the folder
openmdx-2.4.1/openejb-3/openejb/deployment-unit
- to
the Tomcat directory TOMCAT_HOME\webapps
and then rename it to 0 openmdx-openejb.war
(Tomcat must load it as the first WebApp)
Next
we install the openCRX
enterprise archive:
Next
we configure
the database connection
(and optionally a mail resource):
Listing 1: The file openejb.xml
<?xml
version="1.0" encoding="UTF-8"?>
<openejb>
<Container
id="My Stateless Container" type="STATELESS">
TimeOut 0
PoolSize 10
StrictPooling
true
</Container>
<!-- openCRX with HSQLB, DB:
CRX_CRX -->
<Resource id="jdbc_opencrx_CRX"
type="DataSource">
JdbcDriver
org.hsqldb.jdbcDriver
JdbcUrl
jdbc:hsqldb:hsql://127.0.0.1:9001/CRX_CRX
UserName sa
Password manager99
JtaManaged true
</Resource>
<Resource
id="mail/provider/CRX" type="javax.mail.Session">
mail.debug true
mail.transport.protocol smtp
mail.smtp.user
myusername
mail.smtp.password mypassword
mail.smtp.starttls.enable true
mail.smtp.auth true
mail.smtp.host myhost
mail.smtp.port 25
mail.smtp.user
myuseruname
mail.from mymailfrom
mail.store.protocol pop3s
mail.pop3s.host myhost
mail.pop3s.port 995
mail.pop3s.auth
true
mail.pop3s.user myusername
mail.pop3s.password
mypassword
</Resource>
<Deployments dir="apps/"
/>
</openejb>
The following
table might be helpful to configure your database connection:
HSQLDB
1
|
org.hsqldb.jdbcDriver jdbc:hsqldb:hsql://127.0.0.1:9001/CRX_CRX
|
MySQL
5
|
com.mysql.jdbc.Driver jdbc:mysql://127.0.0.1:3306/CRX_CRX
|
PostgreSQL
8
|
org.postgresql.Driver jdbc:postgresql://127.0.0.1:5432/CRX_CRX
|
MS
SQL 2005
|
com.microsoft.sqlserver.jdbc.SQLServerDriver jdbc:sqlserver://127.0.0.1:1433;databaseName=CRX_CRX;selectMethod=cursor
|
DB/2
9
|
com.ibm.db2.jcc.DB2Driver jdbc:db2://127.0.0.1:50000/CRX_CRX
|
Oracle
10
|
oracle.jdbc.driver.OracleDriver jdbc:oracle:thin:@127.0.0.1:1521:XE
|

|
Verify all the
relevant information for correctness, e.g. ensure that the
JdbcUrl – in particular the database name – the
UserName, and the Password match with your
installation.
A simple copy/paste
of the above sample file will typically not work, i.e. it is
expected that you will have to adapt some of the parameters.
|
We
also need to configure openCRX
logging:
Listing 2: The file server.log.properties
ApplicationId =
openCRX
LogFileExtension = log
LogFilePath =
D:/apache-tomcat-6.0.18/logs/
LogLevel
= warning
java.LoggingMechanism =
SharedDatedFileLoggingMechanism
LogFormat =
${logger}|${time}|${level}|${logsource}|${host}|${thread}|${class}|${method}|${line}|${summary}|${detail}
-

|
Adapt D:/apache-tomcat-6.0.18
to your environment.
Notice the slashes (“/”) in the path –
they are forward slashes on all platforms!
|
Next
we create a batch file to start Apache Tomcat with all the
appropriate JVM options:
Listing 3: The file run.bat
RMDIR /S /Q
D:\apache-tomcat-6.0.18\temp
MKDIR
D:\apache-tomcat-6.0.18\temp
RMDIR
/S /Q D:\apache-tomcat-6.0.18\work
MKDIR
D:\apache-tomcat-6.0.18\work
RMDIR
/S /Q D:\apache-tomcat-6.0.18\maildir
set
JAVA_HOME=D:\Java\jdk1.5.0
set
JAVA_OPTS=-Xmx800M
set JAVA_OPTS=%JAVA_OPTS%
-Djava.protocol.handler.pkgs=org.openmdx.kernel.url.protocol
set
JAVA_OPTS=%JAVA_OPTS%
-Dorg.openmdx.log.config.filename=D:\apache-tomcat-6.0.18\server.log.properties
set
JAVA_OPTS=%JAVA_OPTS%
-Dorg.opencrx.maildir=D:\apache-tomcat-6.0.18\maildir
set
JAVA_OPTS=%JAVA_OPTS%
-Dopencrx.CRX.jdbc.driverName="org.postgresql.Driver"
set
JAVA_OPTS=%JAVA_OPTS%
-Dopencrx.CRX.jdbc.url="jdbc:postgresql://localhost:5432/CRX_CRX"
set
JAVA_OPTS=%JAVA_OPTS% -Dopencrx.CRX.jdbc.userName="sa"
set
JAVA_OPTS=%JAVA_OPTS% -Dopencrx.CRX.jdbc.password="manager99"
REM
JAVA_OPTS=%JAVA_OPTS%
-Dorg.openmdx.persistence.jdbc.useLikeForOidMatching=false
catalina.bat
run
-

|
adapt D:\apache-tomcat-6.0.18
to your environment
adapt D:\Java\jdk1.5.0
to your environment
adapt the options related to the database connection to your
environment (driverName,
url,
userName,
and password)
if you are using PostgreSQL and if you set up the database as
proposed by us, you can also uncomment the JVM option
useLikeForOidMatching=false for enhanced performance.
|
Listing 4: The file run.sh
#!/bin/sh
export
CATALINA_HOME=/opt/apache-tomcat-6.0.18
export
JAVA_HOME=/opt/Java/jdk1.5.0
export
JAVA_OPTS="-Xmx800M -XX:MaxPermSize=128m
-Dtomcat.server.port=8005"
export JAVA_OPTS="$JAVA_OPTS
-Djava.protocol.handler.pkgs=org.openmdx.kernel.url.protocol"
export
JAVA_OPTS="$JAVA_OPTS
-Dorg.openmdx.log.config.filename=$CATALINA_HOME/server.log.properties"
export
JAVA_OPTS="$JAVA_OPTS
-Dorg.opencrx.maildir=$CATALINA_HOME/maildir"
export
JAVA_OPTS="$JAVA_OPTS
-Dopencrx.CRX.jdbc.driverName="org.postgresql.Driver"
export
JAVA_OPTS="$JAVA_OPTS
-Dopencrx.CRX.jdbc.url="jdbc:postgresql://localhost:5432/CRX_CRX"
export
JAVA_OPTS="$JAVA_OPTS -Dopencrx.CRX.jdbc.userName="sa"
export
JAVA_OPTS="$JAVA_OPTS
-Dopencrx.CRX.jdbc.password="manager99"
cd
$CATALINA_HOME
rm -Rf temp
mkdir temp
rm -Rf
work
./bin/catalina.sh run
-

|
adapt the options related to the database connection to your
environment (driverName,
url,
userName,
and password)
|
Next, we have to make a
few changes to Tomcat's server.xml:
open the file
TOMCAT_HOME\conf\server.xml
look
for the connector definition <Connector
port="8080" protocol="HTTP/1.1"
and add the option URIEncoding="UTF-8"
so that the connector definition looks as shown below:
Listing 5: Connector definition in server.xml
<Connector
port="8080" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="8443"
URIEncoding="UTF-8"
/>
-

|
Tomcat can create Apache-style access log
files as follows: in
the file TOMCAT_HOME\conf\server.xml
,
look for the engine definition <Engine
name="Catalina" defaultHost="localhost”>
and then add the following valve section just below:
Listing 6: Access Log Valve in server.xml
... <Engine name="Catalina"
defaultHost="localhost">
<Valve
className="org.apache.catalina.valves.AccessLogValve"
directory="logs" prefix="combined_access_log."
suffix=".txt" pattern="combined"
resolveHosts="false" /> ...
|
As a final step, you must activate security for
the openCRX application.
Listing 7: The file tomcat-users.xml
<?xml
version='1.0' encoding='utf-8'?>
<tomcat-users>
<role rolename="OpenCrxAdministrator"/>
<role
rolename="OpenCrxUser"/>
<role
rolename="OpenCrxRoot"/>
<role
rolename="manager"/>
<user
username="admin-Root" password="opencrx"
roles="OpenCrxRoot"/>
<user
username="admin-Standard" password="opencrx"
roles="OpenCrxAdministrator,OpenCrxUser"/>
<user
username="system" password="manager99"
roles="manager"/>
<user username="guest"
password="opencrx"
roles="OpenCrxUser"/>
</tomcat-users>
-

|
We recommend that you stay with the file-based
authentication for all users until you have finished installing
openCRX. You avoid situations where you have to trouble-shoot
multiple issues at the same time...
|

|
It is recommended that you stay with the
file-based authentication for the user admin-Root. This
simplifies the openCRX bootstrapping.
|

|
Just a quick reminder before you move on to
starting Tomcat. Please remember to copy the JDBC driver
appropriate for your database management system to the Tomcat
directory TOMCAT_HOME\lib
(refer to the relevant DB installation guide
for additional information).
|
4 Starting
Tomcat
You are now
ready to start Tomcat. Open a command shell and start run.bat (or
run.sh on Linux). You should verify whether the start options match
the ones described earlier:
Listing 8: Tomcat console output
[12:11:07.72]C:\apache-tomcat-6.0.xx\bin>run
[12:11:13.04]C:\apache-tomcat-6.0.xx\bin>RMDIR
/S /Q
C:\apache-tomcat-6.0.xx\temp
[12:11:13.08]C:\apache-tomcat-6.0.xx\bin>MKDIR
C:\apache-tomcat-6.0.xx\temp
[12:11:13.09]C:\apache-tomcat-6.0.xx\bin>RMDIR
/S /Q
C:\apache-tomcat-6.0.xx\work
[12:11:13.23]C:\apache-tomcat-6.0.xx\bin>MKDIR
C:\apache-tomcat-6.0.xx\work
[12:11:13.23]C:\apache-tomcat-6.0.xx\bin>RMDIR
/S /Q
C:\apache-tomcat-6.0.xx\maildir
[12:11:13.23]C:\apache-tomcat-6.0.xx\bin>set
JAVA_HOME=D:\Java\jdk1.5.0
[12:11:13.23]C:\apache-tomcat-6.0.xx\bin>set
JAVA_OPTS=-Xmx800M
-Djava.protocol.handler.pkgs=org.openmdx.kernel.url.protocol
-Dorg.openmdx.log.config.filename=C:\apache-tomcat-6.0.xx\server.log.properties
-Dorg.opencrx.maildir=C:\apache-tomcat-6.0.xx\maildir
-Dopencrx.CRX.jdbc.driverName="org.postgresql.Driver"
-Dopencrx.CRX.jdbc.url="jdbc:postgresql://localhost:5432/CRX_CRX"
-Dopencrx.CRX.jdbc.userName="system"
-Dopencrx.CRX.jdbc.password="manager99"
-Dorg.openmdx.persistence.jdbc.useLikeForOidMatching=false
[12:11:13.23]C:\apache-tomcat-6.0.xx\bin>catalina.bat
run
Using CATALINA_BASE: C:\apache-tomcat-6.0.xx
Using
CATALINA_HOME: C:\apache-tomcat-6.0.xx
Using CATALINA_TMPDIR:
C:\apache-tomcat-6.0.xx\temp
Using JRE_HOME:
D:\Java\jdk1.5.0
Mar 16, 2009 12:11:16 PM
org.apache.catalina.core.AprLifecycleListener init
INFO: The APR
based Apache Tomcat Native library which allows optimal performance
in production environments was not found
Mar 16, 2009 12:11:16 PM
org.apache.coyote.http11.Http11Protocol init
INFO: Initializing
Coyote HTTP/1.1 on http-8080
Mar 16, 2009 12:11:16 PM
org.apache.catalina.startup.Catalina load
INFO: Initialization
processed in 1173 ms
Mar 16, 2009 12:11:16 PM
org.apache.catalina.core.StandardService start
INFO: Starting
service Catalina
Mar 16, 2009 12:11:16 PM
org.apache.catalina.core.StandardEngine start
INFO: Starting
Servlet Engine: Apache Tomcat/6.0.18
OpenEJB init-params:
Apache
OpenEJB 3.1 build:
20081009-03:31
http://openejb.apache.org/
DEBUG: JavaMail
version 1.4.1
DEBUG: not loading file:
D:\Java\jdk1.5.0\jre\lib\javamail.providers
DEBUG:
java.io.FileNotFoundException:
D:\Java\jdk1.5.0\jre\lib\javamail.providers (The system cannot find
the file specified)
DEBUG: !anyLoaded
DEBUG: not loading
resource: /META-INF/javamail.providers
DEBUG: successfully loaded
resource: /META-INF/javamail.default.providers
DEBUG: Tables of
loaded providers
DEBUG: Providers Listed By Class Name:
{com.sun.mail.smtp.SMTPSSLTransport=javax.mail.Provider[TRANSPORT,...}
DEBUG:
Providers Listed By Protocol:
{imaps=javax.mail.Provider[STORE,imaps,com.sun.mail.imap.IMAPSSLStore,Sun
Microsystems, Inc]...}
DEBUG: successfully loaded resource:
/META-INF/javamail.default.address.map
DEBUG: !anyLoaded
DEBUG:
not loading resource: /META-INF/javamail.address.map
DEBUG: not
loading file: D:\Java\jdk1.5.0\jre\lib\javamail.address.map
DEBUG:
java.io.FileNotFoundException:
D:\Java\jdk1.5.0\jre\lib\javamail.address.map (The system cannot
find the file specified)
context path =
/0-openmdx-openejb
context path = /docs
context path =
/examples
context path = /host-manager
context path =
/manager
context path =
Mar 16, 2009 12:12:03 PM
org.apache.coyote.http11.Http11Protocol start
INFO: Starting
Coyote HTTP/1.1 on http-8080
Mar 16, 2009 12:12:03 PM
org.apache.jk.common.ChannelSocket init
INFO: JK: ajp13 listening
on /0.0.0.0:8009
Mar 16, 2009 12:12:03 PM
org.apache.jk.server.JkMain start
INFO: Jk running ID=0 time=0/31
config=null
Mar 16, 2009 12:12:03 PM
org.apache.catalina.startup.Catalina start
INFO: Server startup
in 46797 ms

|
Please note that as long as Tomcat reports
errors/exceptions during this startup phase you must investigate
and fix them before you continue. You might want to inspect the
log files in the Tomcat directory TOMCAT_HOME\logs
to find out what went wrong.
|
Once Tomcat
starts without errors you are ready to continue with the initial
setup of the openCRX
application.
4.1 Initial Setup of openCRX Application
Connect to the login page of openCRX. The exact
URL depends on your deployment details. For a standard openCRX
deployment on Tomcat running on your local machine and listening at
port 8080 the URL is
http://localhost:8080/opencrx-core-CRX/Login
You should see the openCRX Login page as follows:

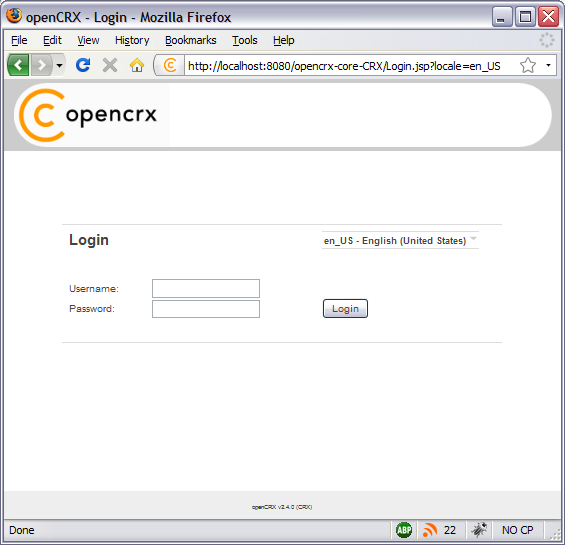

Figure 1: openCRX Login page

|
openCRX tries to determine the locale from
your environment. You can change the locale at any time with the
drop down on the login page.
|
4.1.1 First Login as “admin-Root”
Enter admin-Root
into the field Username and then enter opencrx
into the field Password (obviously, if you chose a different
password when you created the file tomcat-users.xml you have to
enter that password...):

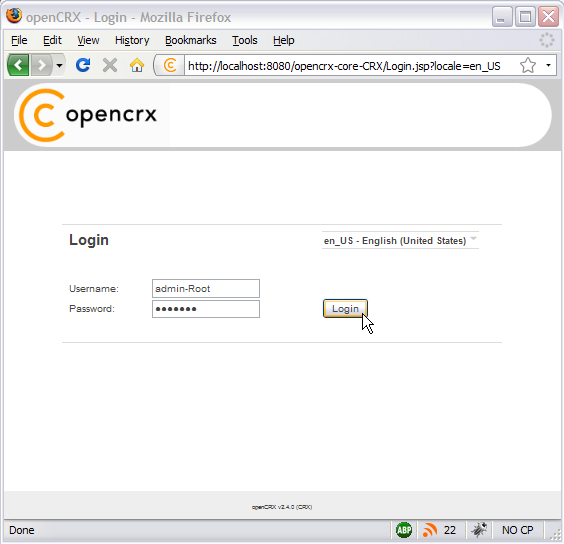

Figure 2: First login with admin-Root / opencrx
Click the button
to start the initialization process.

|
If you can't get past the login screen (with
the correct Username and Password, of course) and the Warning
“Browser must accept cookies”
keeps showing up need to verify your browser settings related
to cookies. If you have installed a personal firewall
(e.g. ZoneAlarm, Comodo, etc.) you also need to verify the cookie
settings of your firewall. Tomcat
must be able to create/set a session cookie.
|
The openCRX servlet is initialized during this
first login, i.e. don't stop/kill the browser if it takes a while.
The application console output will look similar to the following
listing:
Listing 9: Console Output – Initialization of the openCRX
servlet
Mon Mar 16 12:27:34 CET 2009: Login:
requestURL=http://localhost:8080/opencrx-core-CRX/Login.jsp;
isRequestedSessionIdFromCookie=false; servletPath=/Login.jsp;
remoteUser=null
Mon Mar 16 12:27:34 CET 2009: Login:
Redirecting...
Mon Mar 16 12:27:34 CET 2009: Login:
requestURL=http://localhost:8080/opencrx-core-CRX/Login.jsp;
isRequestedSessionIdFromCookie=true; servletPath=/Login.jsp;
remoteUser=null
Mon Mar 16 12:27:35 CET 2009: Login:
requestURL=http://localhost:8080/opencrx-core-CRX/Login.jsp;
isRequestedSessionIdFromCookie=true; servletPath=/Login.jsp;
remoteUser=null
Inspecting
/WEB-INF/config/ui/1-Easy/en_US
Inspecting
/WEB-INF/config/ui/1-Easy/de_CH
Inspecting
/WEB-INF/config/ui/1-Easy/es_MX
Inspecting
/WEB-INF/config/ui/1-Easy/zh_CN
Inspecting
/WEB-INF/config/ui/1-Easy/sv_SE
Inspecting
/WEB-INF/config/ui/1-Easy/tr_TR
Inspecting
/WEB-INF/config/ui/1-Easy/fa_IR
Inspecting
/WEB-INF/config/ui/1-Easy/fr_FR
...
...
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Default
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Default/principal/admin-Root
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Default/principal/Administrators
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Default/principal/Users
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Root
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Root/principal/Administrators
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Root/principal/Users
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Root/principal/admin-Root.User
Creating
org::openmdx::security::realm1/provider/CRX/segment/Root/realm/Root/principal/admin-Root
Loading
/WEB-INF/config/bootstrap/Root/103_security_authentication.xml
Storing
1 objects
Creating
org::openmdx::security::authentication1/provider/CRX/segment/Root
Loading
/WEB-INF/config/bootstrap/Root/200_code_segment.xml
Storing 1
objects
Creating
org::opencrx::kernel::code1/provider/CRX/segment/Root
Loading
/WEB-INF/config/bootstrap/Root/300_admin_segment.xml
Storing 1
objects
Creating
org::opencrx::kernel::admin1/provider/CRX/segment/Root
Loading
/WEB-INF/config/bootstrap/Standard/dummy.xml
Storing 0
objects
Done
Inspecting /WEB-INF/config/filters/
Loading
/WEB-INF/config/filters/
Loaded filters #5229

|
If you see lots of error messages on the
console and/or your log files grow very fast (several hundred KB
if not more) then it is quite likely that your DB connection
is not configured correctly. If your log file contains errors
like MEDIA_ACCESS_FAILURE
there is definitely something wrong with your DB connection (or
your DB). Please note that there is absolutely no sense in
continuing before you have fixed your DB connection. You might
want to verify
the spelling of the name of your database
(including capitalization), e.g. crx-CRX
vs. CRX_CRX
user name (e.g. system)
and password (e.g. manager99)
permissions of the user, etc.
|
After the successful startup of openCRX you see a
screen similar to the one shown in the figure below. You should see
the root objects Administration, Codes, Security Realm, Security
Policies, and Security Subjects:

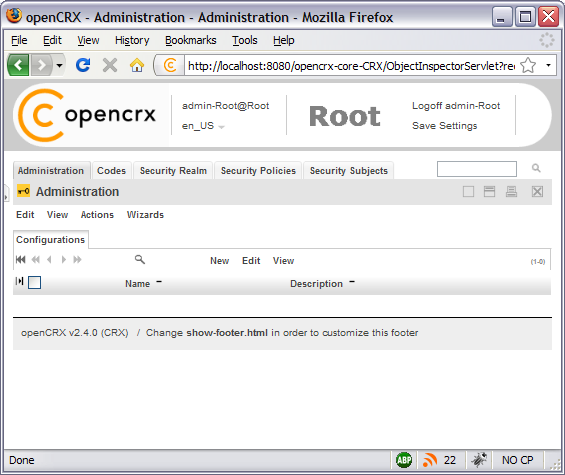

Figure 3: Start screen of admin-Root
4.1.2 Create Data Segment “Standard”
Execute the operation Actions
> Create Administrator to create a new segment and
selected default accounts (including an administrator's account
which allows you to manage the newly created segment).

Figure 4: Create a new segment with Actions >
Create Administrator
Set the field Segment name to
Standard. Leave the
field Admin principal name empty and set the
fields Initial password and Password again
to opencrx
as shown in the figure below:

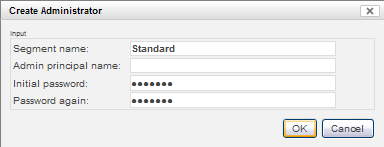

Figure 5: Create a new segment named Standard

|
Please verify the spelling/capitalization of
the segment name: Standard (with a capital “S”).
|
Next you click OK to
create the segment Standard and the segment administrator
admin-Standard. The result of executing this operation should
look as follows (Status 0 indicates that there were no errors):

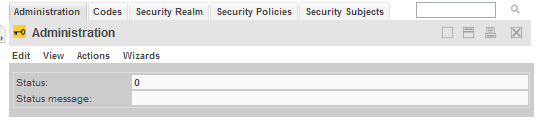

Figure 6: Result of operation Create Administrator
4.1.3 Import Codes and Data
openCRX is distributed with many code tables and
several data files (e.g. unit of measurement information, activity
management process). Code tables and data files must be imported
from the provided XML files to make them available to openCRX.
Execute the operation View
> Reload and then click OK
to start the import:

Figure 7: Load Code Tables and Data – Step 1

Figure 8: Load Code Tables and Data – Step 2
Please note that this operation takes some time
to complete as thousands of objects are made persistent in your
database during the import. The console output will look similar to
the following listing:
Listing 10: Console Output – Importing Codes and Data
...
Loading codes
Loading
/WEB-INF/config/code/Root/en_US/accesslevel.xml
Loading
/WEB-INF/config/code/Root/en_US/accountcategory.xml
Loading
/WEB-INF/config/code/Root/en_US/accountrole.xml
Loading
/WEB-INF/config/code/Root/en_US/accountroleContract.xml
Loading
/WEB-INF/config/code/Root/en_US/accountroleInventoryItem.xml
Loading
/WEB-INF/config/code/Root/en_US/accountstate.xml
...
Loading
/WEB-INF/config/code/Root/ro_RO/usageproductbaseprice.xml
Loading
/WEB-INF/config/code/Root/ro_RO/utcoffset.xml
Storing 1626 code
entries
Done
Loading data
Loading
/WEB-INF/config/data/Root/100_uom_schedules.xml
Storing 4
objects
Loading /WEB-INF/config/data/Root/101_uoms.xml
Storing
39 objects
Done
Inspecting
/WEB-INF/config/ui/1-Easy/en_US
Inspecting
/WEB-INF/config/ui/1-Easy/de_CH
...
Loading 63 ui files for
locale es_CO
Loading 67 ui files for locale sk_SK
Loading 68
ui files for locale ro_RO
Storing 3115 ui elements
Inspecting
/WEB-INF/config/filters/
4.1.4 Set Access Levels of Codes
Navigate to the
package Codes by clicking on the tab [Codes].
Then execute the operation Security
> Set Access Level as shown below:

Figure 9: Execute Operation Security > Set Access
Level
Set the parameters
as shown below and then click OK:

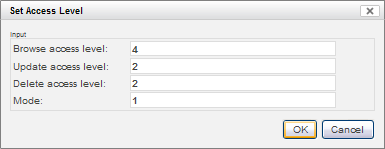

Figure 10: Parameters of Operation Set Access Level
Please note that
this operation also takes a fair amount of time to complete:

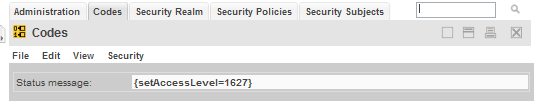

Figure 11: Result of the Operation Set Access Level
The number in the status messages
indicates the number of code values processed (you might get a
different number, which is not a problem).
4.1.5 Restarting Tomcat
Please stop Tomcat by typing <CTRL>-C into
the command window.

|
In case
you're starting Tomcat without the help of a batch file that
cleans Tomcat's tmp and work directories, it is strongly
advised that you clean them by hand before you start Tomcat
again!
|
On Windows you can start Tomcat by executing
TOMCAT_HOME\bin\run.bat,
on Linux you execute TOMCAT_HOME\bin\run.sh.
4.2 Initial Setup of Segment “Standard”
Once Tomcat
is up and running again, we configure the new segment and create a
new user guest.
4.2.1 First Login as “admin-Standard”
Connect to the
login page of openCRX. The exact URL depends on your deployment
details. For a standard openCRX deployment to JBoss running on your
local machine and listening at port 8080 the URL is
http://localhost:8080/opencrx-core-CRX/Login
You should see the openCRX Login page. Enter
admin-Standard into
the field Username and then enter opencrx
into the field Password (you may have chosen a different
password, i.e. enter the password you chose when you created the
segment):

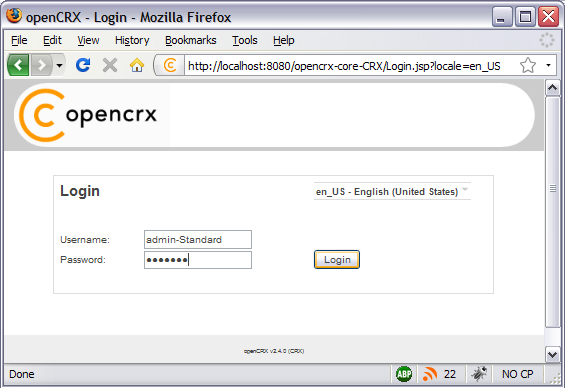

Figure 12: First login with admin-Standard / opencrx
Click the button
to start the login process.
The ObjectInspectorServlet is initialized during
this first login after restarting Tomcat, i.e. don't stop/kill the
browser if it takes a while.

|
Please note that
charts are not displayed when a users logs in for the first time.
Activate charts by executing the operation View
> Recalculate and Refresh.
|
4.2.2 Configure Segment “Standard”
Once the admin-Standard's
homepage is displayed, start the wizard Segment Setup. Select the
menu Wizards >
Segment Setup as
shown below:

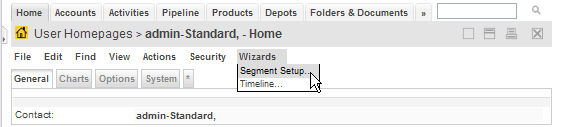

Figure 13: As admin-Standard start the wizard
Segment Setup
This
wizard verifies all the default objects of a segment. Running it on
a newly created segments results in a lot of red crosses. Click the
button [Setup]
and the wizard will create all the missing objects (the red crosses
will change to green check marks as shown below):

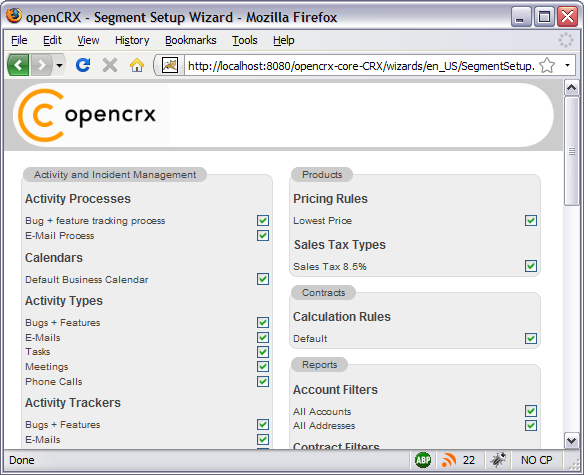

Figure 14: Wizard Segment Setup - properly
configured Segment
Click
on the button [Cancel]
to leave the wizard and return to the homepage of the user
admin-Standard.
4.2.3 Create a new Contact “guest”
Refresh the homepage of the user admin-Standard by clicking on the
icon as show below:

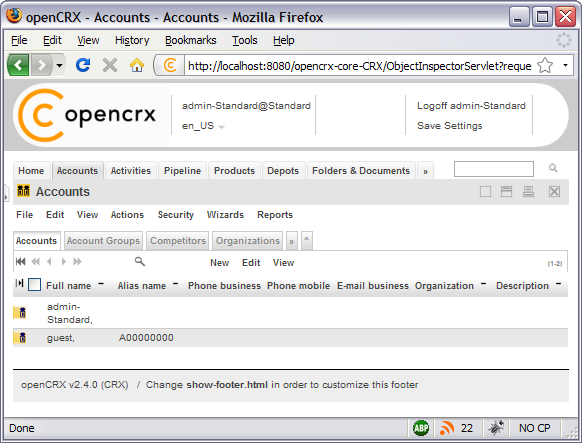

Figure 15: Refresh homepage of user admin-Standard
Hover your mouse
over the fly-in tab to show the following menu:

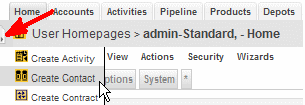

Figure 16: Fly-in menu
Choose the entry Create Contact
and click on it.
You will see an empty form ready to be populated with the data of
our new user guest. At a minimum you must provide a last name, e.g.
guest as shown
below:

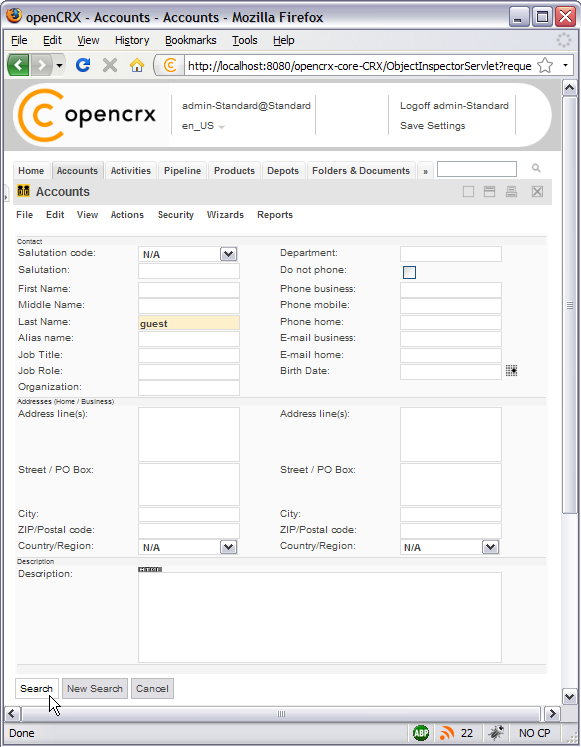

Figure 17: New contact guest – step 1
Next you click on the button [Search].
openCRX will verify that you don't already have a user with the same
last name (but as we are working with a new/empty database this
search doesn't bring up anything, of course). Now you can create the
new contact by clicking on the button [Create
New]:

Figure 18: New contact guest – step 2
As we don't want to
create activities, leads or any other objects for our new contact,
we now click [Cancel] to leave the wizard:

Figure 19: New contact guest – step 3
openCRX takes us
back to the Accounts grid where we see the newly created contact
guest:

Figure 20: New contact guest – step 4
4.2.4 Create a new User “guest”
Click on the (hidden) tab [User
Homepages]:

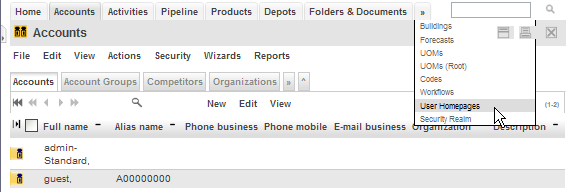

Figure 21: New user guest – step 1
Next you select the
operation Actions > Create
User... which
allows you to create and initialize a new user:

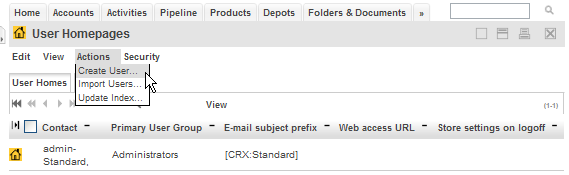

Figure 22: New user guest – step 2
Set the fields to the
values as shown below – type guest
into the field Principal name, use the Lookup
Inspector or the auto-completer to fetch values for Contact
and Primary user group (note that you must either fetch
values with the Lookup Inspector or select entries from the
auto-completer's drop down menu for the parameters Contact
and Primary user group, i.e. it is not sufficient to just
type some text into these fields), and then type a password (e.g.
opencrx) into the
fields Initial password and Password again:

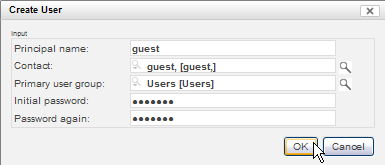

Figure 23: New user guest – step 3
Status 0 indicates that the user guest was
created without errors:

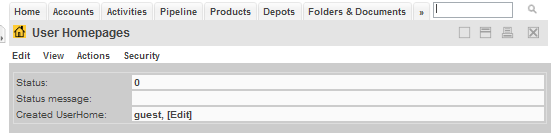

Figure 24: New user guest – step 4
Next we navigate to the homepage of the newly
created user guest by clicking on the icon as show below:

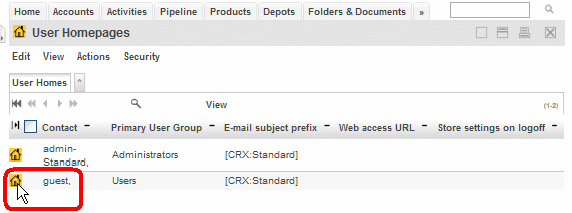

Figure 25: New user guest – step 4
Please note that we are still logged in as
admin-Standard (as shown in the header of the application), but we
are looking at the homepage of the user guest. Select the operation
Edit > User Settings
and click on it:

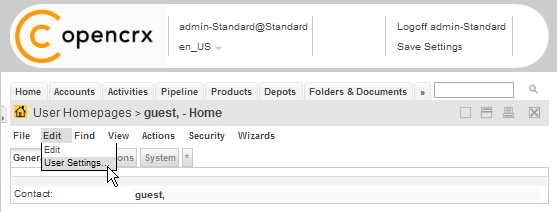

Figure 26: New user guest – step 5
This will start the wizard User Settings. You can configure various
settings with this wizard. At a minimum you should probably set the
timezone and enter the new user's e-mail address. Once
you're done you can click the button [Apply].
The wizard will then create a bunch of objects and finalize the
initialization of the user guest:

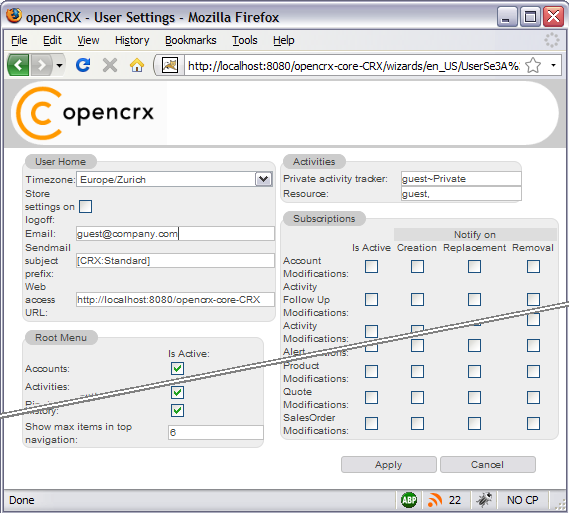

Figure 27: New user guest – step 6
Click [Cancel]
to leave the wizard and then logoff as admin-Standard.

|
The wizard User Settings created a user group
<username>.Group, in our case guest.Group.
The primary user group of our user guest was automatically set to
this new user group guest.Group.
If you want to change the primary user group
to anything else or if you ever must reset a user (lost password,
etc.), you can re-execute the operation Create
User as admin-Standard at any time.
If you want to reset a user without changing
the user's password, you can simply leave the password fields
empty when recreating the user.
|
4.2.5 Login as “guest”
Let's verify whether our new user guest can
actually login. Enter guest
into the field username, opencrx
into the field password, and then click [Login].
You should now see the homepage of the newly
created user guest. Initialize the charts by executing the operation
View > Recalculate and

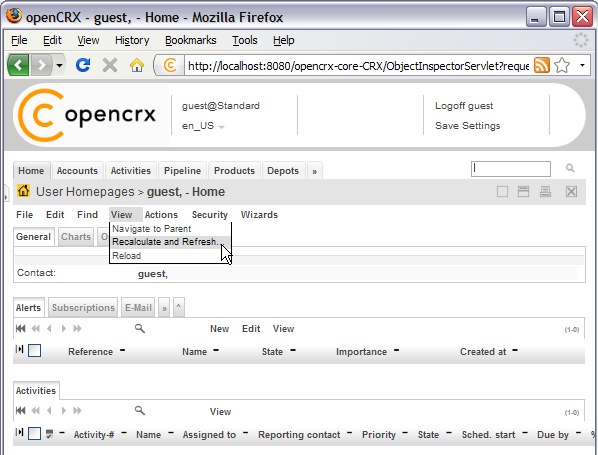

Refresh:

That's it – you have successfully completed the
installation and initialization of openCRX and you have also created
a user guest.
5 Next Steps
Now that you have successfully installed and
configured openCRX you might want to have a look at some of the
additional documentation published at
http://www.opencrx.org/documents.htm.
