UML
As of openCRX v2.6.0 we migrated all the openMDX and openCRX UML Models from IBM Rational Software Modeler (a commercial tool) to the Eclipse Modeling Framework EMF.
If you want to browse the UML models, here are instructions on how to load the models into your Eclipse:
- download and install the openMDX SDK (contains openMDX UML Models)
- download and install the openCRX SDK (contains openCRX UML Models)

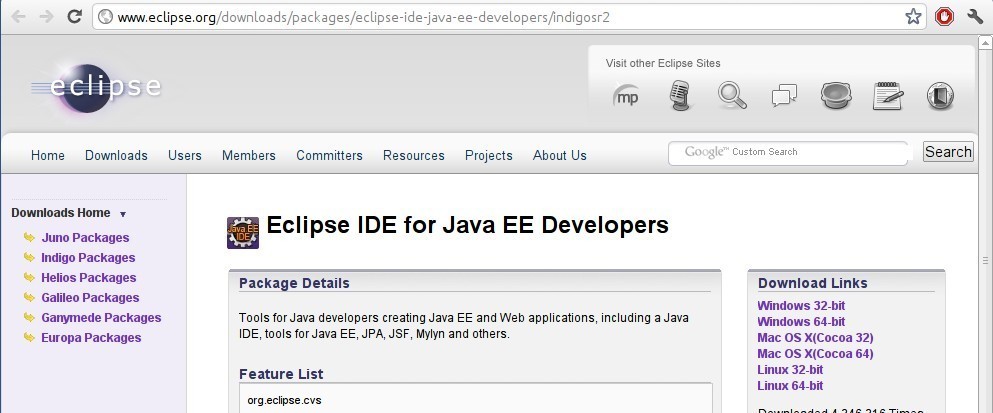

- download Eclipse IDE for Java Developers (e.g. Galileo):
- install Eclipse (typically just a matter of unzipping to a directory)

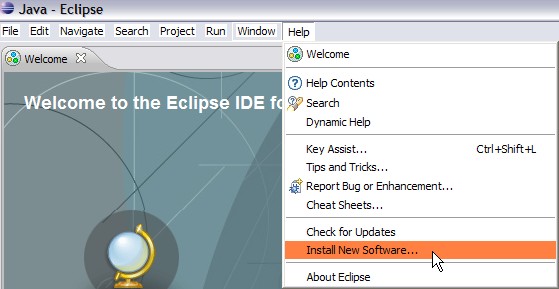

- run Eclipe and then select Help > Install New Software:
- select the UML2 Tools SDK as shown below and then click [Next]:
- accept the license and the click [Finish to start the installation of the UML2 Tools SDK

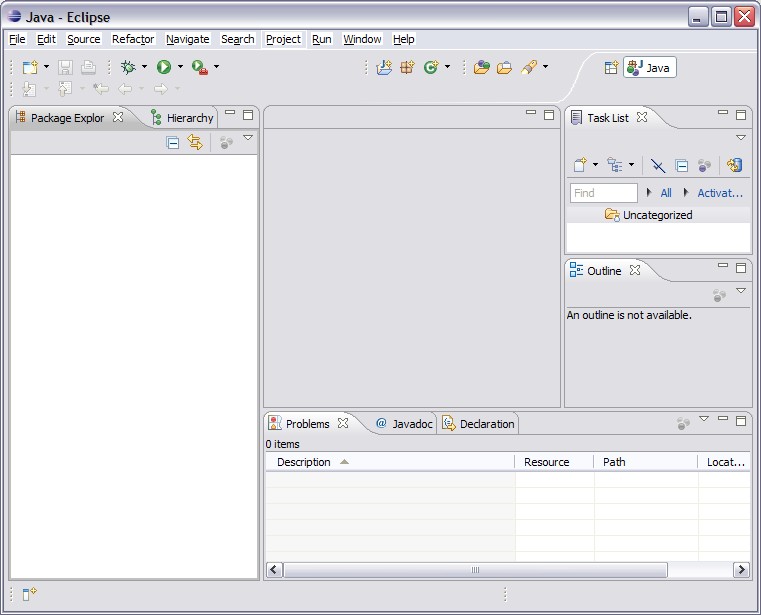

- restart Eclipse - you should see the following screen:

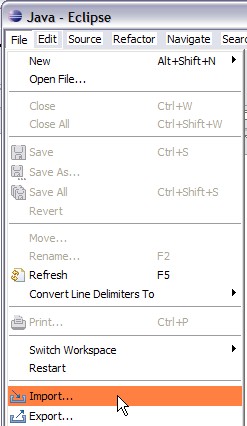

- select the menu File > Import:

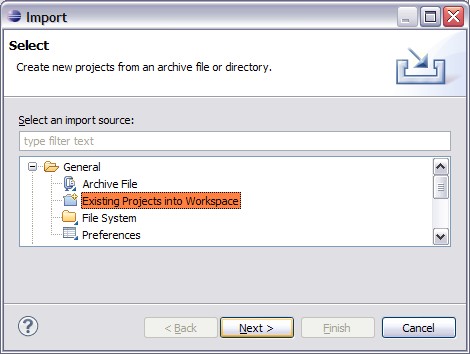

- in the import dialog, select General > Existing Projects into the Workspace:

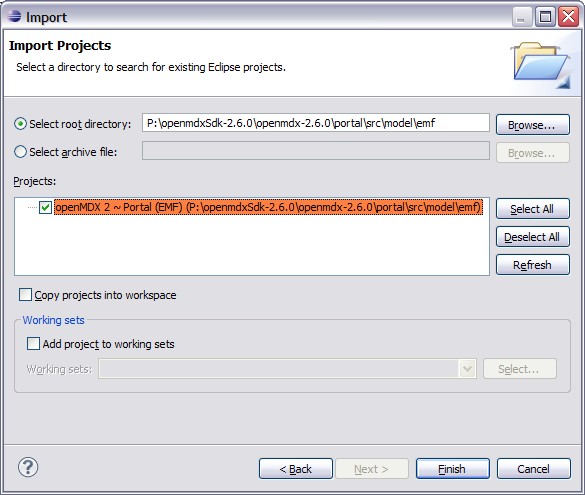

- click the [Browse] button and navigate to the directory {openMDX SDK Install Directory}\openmdx-2.6.0\portal\src\model\emf and then select in the Projects window the entry openMDX 2 ~ core (EMF) as shown below; click [Finish] to import:
- repeat this import for openMDX 2 ~ Portal (EMF) located in the directory {openMDX SDK Install Directory}\openmdx-2.6.0\core\src\model\emf:

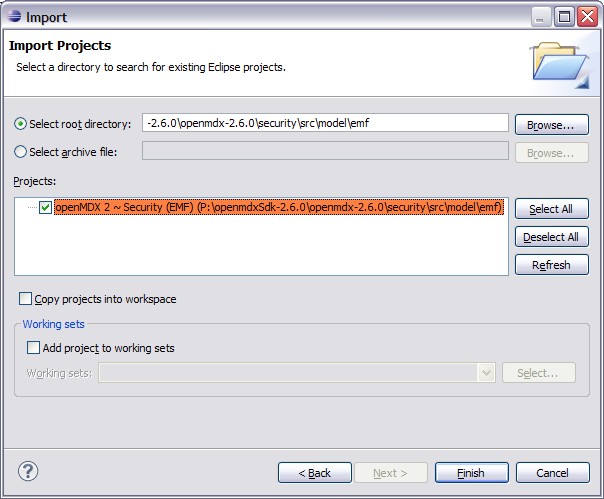

- repeat this import for openMDX 2 ~ Security (EMF) located in the directory {openMDX SDK Install Directory}\openmdx-2.6.0\security\src\model\emf:
- repeat this import for openCRX 2 ~ core (EMF) located in the directory {openCRX SDK Install Directory}\opencrx-2.6.0\core\src\model\emf:

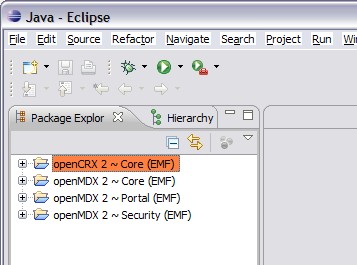

- your Eclipse should now look as follows:

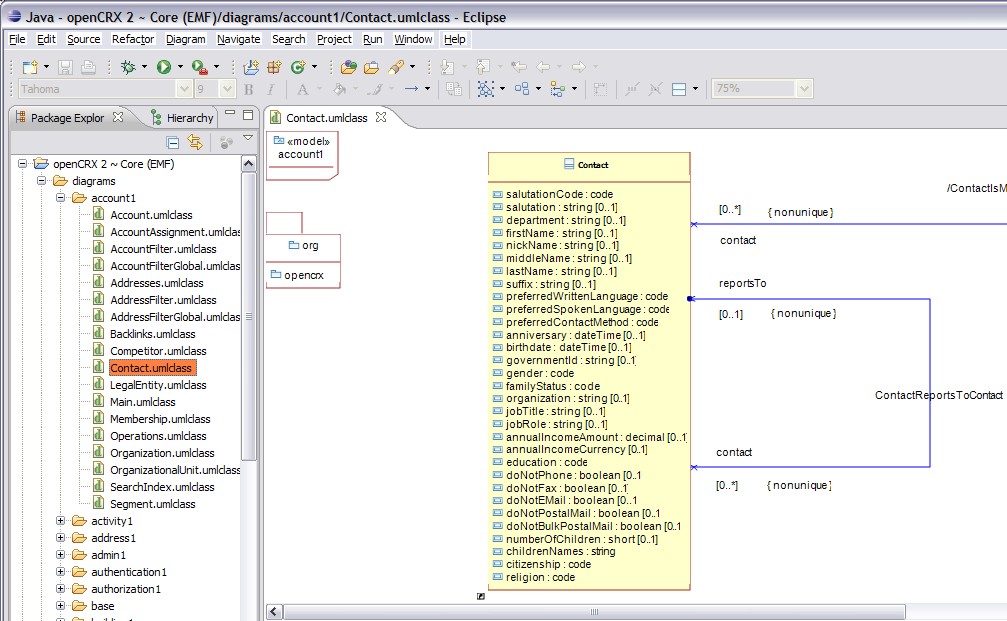

- you can now - for example - inspect the class diagram Contact contained in the package account1 by drilling down into openCRX 2 ~ Core (EMF) > diagrams > account1 > Contact.umlclass; double-click Contact.umlclass to display this class diagram:
